IBC Container Overview

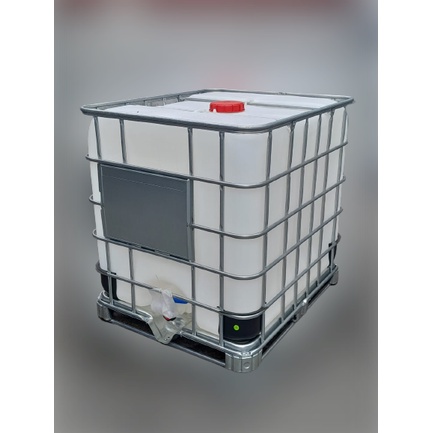

Intermediate bulk containers (IBCs) are rigid, pallet-mounted containers for efficient storage and transport of bulk liquids and dry flowable products — typical capacity approximately 1,000 litres (dependent on product density). The HDPE inner bottle is protected by a galvanised steel cage and integrated with a standard pallet for direct forklift or pump-truck handling.
IBCs are widely used in oleochemical, food, chemical, and pharmaceutical industries for intermediate storage of liquids, oils, resins, and dry flowable powders.
Technical Specifications
| Parameter | Specification |
|---|
| Capacity | ~1,000 litres (275 US gallons) |
| Footprint | 1,200 × 1,000 mm (standard pallet) |
| Height (filled) | ~1,160 mm |
| Inner container | HDPE (food-grade available) |
| Outer cage | Hot-dip galvanised steel |
| Pallet | Galvanised steel (integrated) |
| Outlet valve | DN50 or DN80 butterfly valve (standard) / camlock on request |
| Inlet opening | 150mm lid — top fill |
| Stack height | 2–3 filled IBCs (cage-to-cage) |
| UN certification | Available for hazardous goods transport |
| Cleaning | Reusable — steam or pressure wash compatible |
Suitable materials
IBCs are suitable for: oils, resins, fatty acids, syrups, chemicals, solvents, and dry flowable powders. Not suitable for: highly viscous materials (pump required), materials above 80°C continuous, or materials incompatible with HDPE. Contact ENZAC to confirm suitability for your product.
Industries & Applications
System integration
ENZAC supplies this equipment as part of complete systems — not standalone. Tell us your full process requirement and we will specify the right system around it.
