Also known as: Robot palletizer, articulated arm palletizer, cobot palletizer, collaborative palletizer
ENZAC supplies industrial 6-axis robotic palletizers (up to 2,190 cycles/hr) and collaborative cobot palletizers (WSC-MD series by Warsonco) for lower-throughput lines where 5-minute pattern setup, no safety cage, and human-robot co-existence are priorities.
6-axis articulated arm for high-throughput bag, carton, and tray palletizing. Complex multi-layer patterns, layer interleaving, stretch wrap integration, SCADA/OEE connectivity. PETRONAS urea project reference: 2 high-speed palletizing cells, 3 open mouth bagging lines, PETRONAS PTS compliant.
Model
Max Load (kg)
Cycles/hr
Precision (mm)
IP
IRB460
110
2,190
±0.2
IP67
IRB660
180/250
1,570/1,360
±0.05
IP67

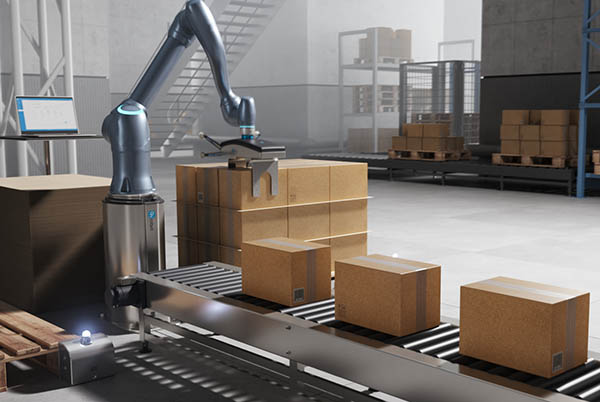

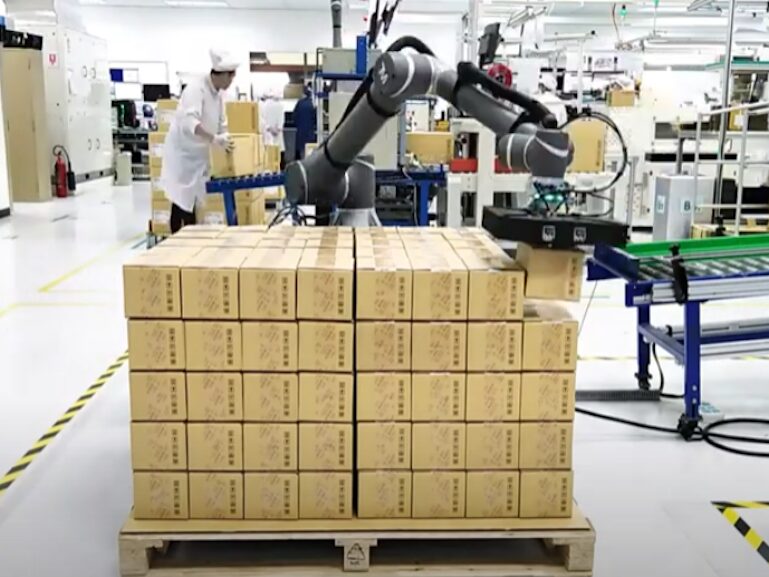

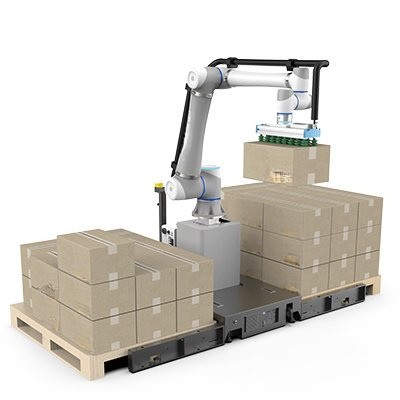

Collaborative Cobot Palletizer (WSC-MD Series — Warsonco)
For lower-throughput lines (≤8 pcs/min) where human-robot co-existence is required. 5-minute path setup, no safety cage, ±0.04mm repeat accuracy. ENZAC is the authorised Malaysian integrator for Warsonco cobot palletizers.
Model
Payload (kg)
Radius (mm)
Speed (pcs/min)
Pallet size (mm)
WSC-MD12G
12
1,900
≤8
1,400×1,400
WSC-MD16G
16
1,900
≤8
1,400×1,400
WSC-MD20G
20
1,600
≤8
1,200×1,200
WSC-MD25G
25
1,600
≤6
1,200×1,200
WSC-MD30G
30
1,460
≤6
1,000×1,200
Cobot Key Features
5-minute pattern setup — up to 800 patterns storable
ENZAC supplies this equipment as part of complete bulk material handling and end-of-line automation systems — not as an isolated piece. Tell us your full process scope and we'll specify the complete system.
Get a Quote
Send us your material data sheet and throughput requirement. We'll specify and quote within 2 working days.
