Sieve Separator — Particle Classification & Oversize Removal

Also known as: Vibrating sieve, rotary vibrating screen, tumbler screener, linear vibrating screen, classification screen

Vibratory screening equipment for particle size classification, oversize removal, and contamination interception in bulk powder and granule streams. ENZAC supplies the Dayong DY series — rotary vibrating, ultrasonic, tumbler, and linear configurations.

Screen dia: 400–2,000mm

Mesh: 0.075–10mm

Layers: 1–3

Screen change: <5 min

Ultrasonic option: Yes

Get a Quote → WhatsApp

✓ ENZAC-branded supply | ✓ Malaysia commissioned & supported | ✓ Spare parts & after-sales

Dayong Series Overview

ENZAC supplies vibratory screening equipment from Dayong (Xinxiang Dayong Vibration Equipment Co. Ltd) — a specialist manufacturer of screening and conveying equipment with a global customer base including Colgate, CNNC, PPG Industries, and BTR. All equipment is supplied under the ENZAC brand to our specification.

Which Screen Type Do You Need?

Type	Best For	Key Feature

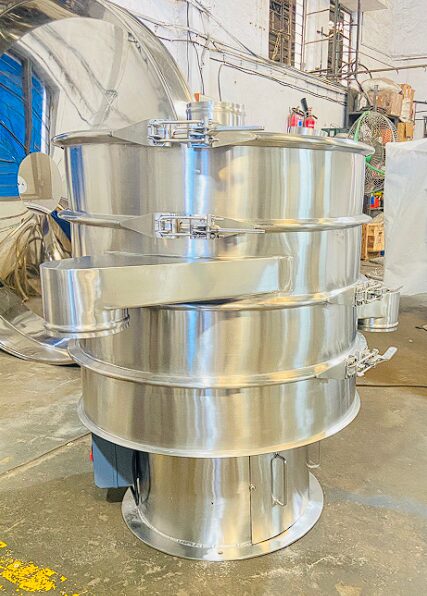

Rotary Vibrating (DY)	Most powder and granule classification	Compact, quick mesh change, 1–3 layers
Ultrasonic (DYC)	Fine powder below 100 micron; oily or sticky material	25–38kHz ultrasonic prevents mesh blinding
Tumbler Screener (DYB)	High-precision classification — 90–95% accuracy	Simulates manual sieving; longest material track on mesh
Linear Vibrating (DZSF)	High throughput continuous screening	Large area, multiple material grades

DY Series Technical Specs

Model	Screen OD (mm)	Effective Area (m²)	Power (kW)
DY-400	400	0.10	0.25
DY-600	600	0.25	0.55
DY-800	800	0.45	0.75
DY-1000	970	0.68	1.1
DY-1200	1170	1.00	1.5
DY-1500	1470	1.60	2.2
DY-1800	1770	2.35	3.0
DY-2000	1950	2.85	3.7

Industries & Applications

Oleochemical Fertilizer Food & Beverage Cement & Minerals Pharmaceutical Plastics & Polymers Oil & Gas Animal Feed

Need a system integration?

ENZAC supplies this equipment as part of complete bulk material handling and end-of-line automation systems — not as an isolated piece. Tell us your full process scope and we'll specify the complete system.

Get a Quote

Send us your material data sheet and throughput requirement. We'll specify and quote within 2 working days.

Send an Enquiry →

WhatsApp Enquiry

Same-day response

Quick Specs

Screen OD400–2,000mm

Mesh range0.075–10mm

Max layers3

Vibration1,450 RPM

Power0.25–3.7 kW

Screen change<5 min
