Bag Dump Station — Dust-Free 25–50kg Bag Discharge

Two Models Available

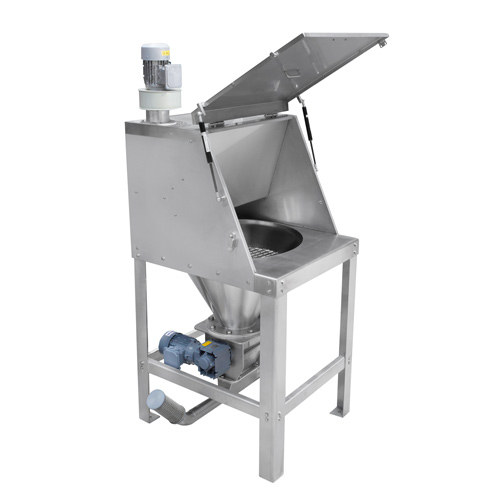

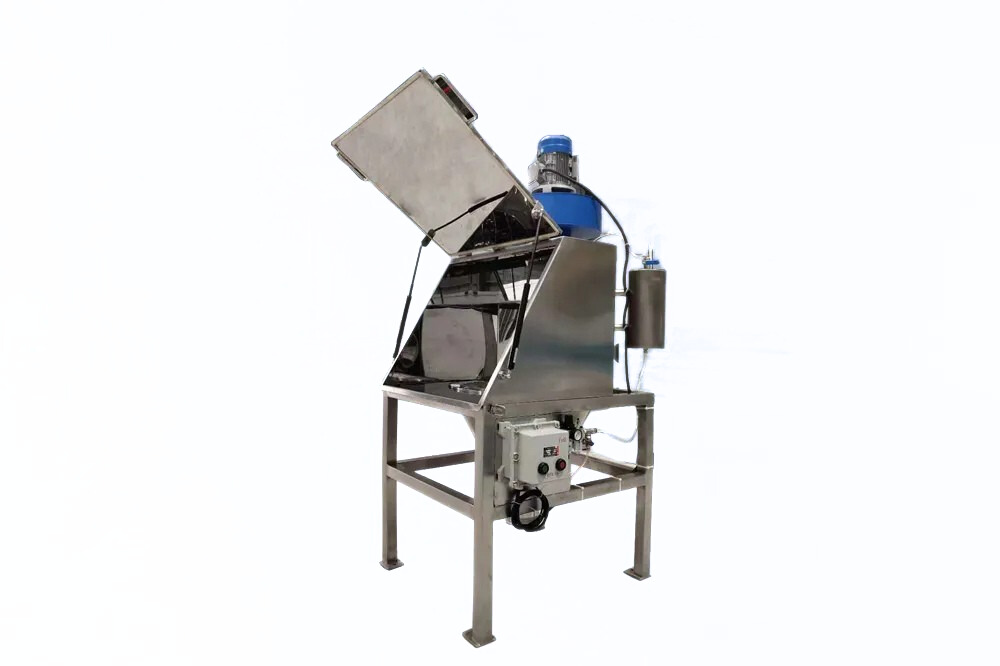

FT-TL-880 — Manual Dust-Free Feeding Station

Operator places bags on the grating; integrated extraction fan captures dust during unloading. The filter element is a 316L sintered cartridge that prevents material contamination during backflush cleaning. Optional integrated vibrating screen intercepts lumps before downstream conveying.

Automatic Bag Dumping Machine

Continuous production automatic unpacking: bags enter via belt conveyor, rotating blade cuts the bag, compressed air completely expels material, empty bags auto-discharged. Capacity: 200 bags/hr. Powder yield: 99.8–99.9%.

Key Advantages

• Dust-free throughout — no ambient dust exposure for operators
• Quick-disassembly structure for rapid cleaning; 90° adjustable feeding platform height
• Gas spring + chain top door with limit switch — fan only starts when door is in position
• Food-grade materials throughout — GMP-compliant gaskets and contact surfaces
• Explosion-proof option available — for combustible dust materials
