Pallet Packaging — Load Stabilisation
Stretch wrapping stabilises palletised loads before transit — preventing bags, boxes, or products from shifting during truck transport or warehouse storage. ENZAC integrates stretch wrappers directly with the palletizer outfeed, so wrapping begins automatically when a pallet is complete.
Three Wrapping System Types
Turntable Stretch Wrapper
The pallet rotates on a powered turntable while a film carriage moves up and down to apply stretch film. Most common for general palletizing applications. The pallet must be structurally stable enough to rotate — not suitable for very tall or unstable loads.
Rotary Arm Stretch Wrapper
The pallet remains stationary while a rotating arm carries the film around it. Ideal for heavy, unstable, or very tall loads that cannot safely rotate on a turntable. Suitable for loads up to 2,000 kg and pallets with overhanging product.

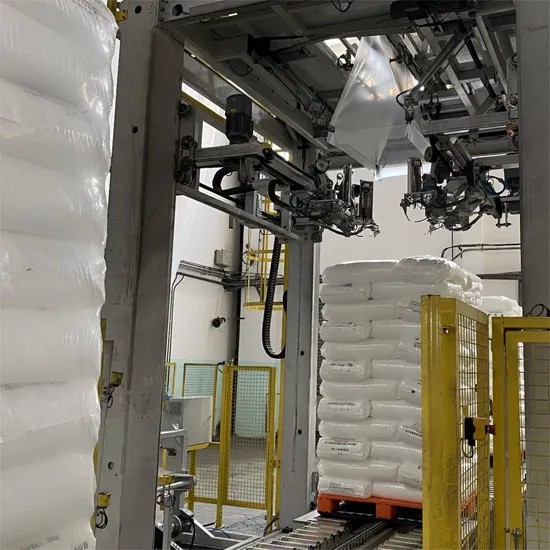

Stretch Hood
A tubular hood of stretch film is pulled over the entire pallet from above — covering the top surface and all four sides in one motion. Provides superior moisture and weathering protection compared to stretch film wrapping. Preferred for outdoor storage or export by sea.
Technical Specifications
| Parameter | Specification |
|---|
| Film type | LLDPE stretch film, 17–30 micron |
| Pre-stretch | Up to 300% (electric pre-stretch carriage) |
| Pallet size | Standard 1,200 × 1,000 mm (customisable) |
| Max pallet weight | Up to 2,000 kg |
| Max pallet height | Up to 2,500 mm |
| Wrap program | Programmable — top wraps, bottom wraps, layers |
| Auto-trigger | Signal from palletizer PLC |
| Throughput | 30–100 pallets/hr depending on type and load |
| Controls | PLC with HMI; recipe storage for different pallet types |
Industries & Applications
System integration
ENZAC supplies this equipment as part of complete systems — not standalone. Tell us your full process requirement and we will specify the right system around it.
